Terminal Tool Set for Push-On Contacts
Designed to release the terminals in
plug and socket cable connections.

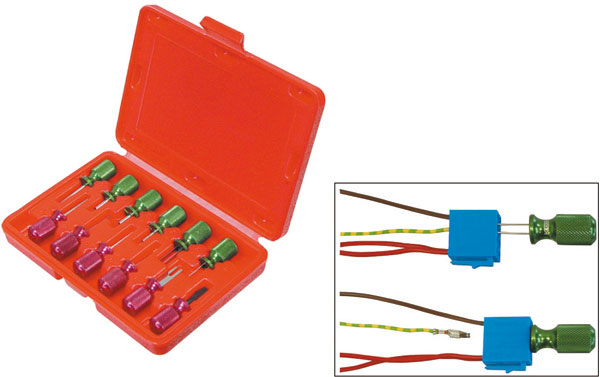

During the release procedure the tool forks are pushed onto the terminal release
mechanism, releasing them from the connector. The terminals can then be
extracted from the plug or socket.
Click on the picture or the part number for more information.
Terminal Tool Set contains the following part numbers
Part Number | Description | Measures |
KL-0190-2601 | Terminal Tool round with Spring “A“ | 3.3mm x 28mm |
KL-0190-2602 | Terminal Tool square “B“ | 1.4mm x 28mm |
KL-0190-2603 | Terminal Tool slot “C“ | 1.6mm x 25mm |
KL-0190-2604 | Terminal Tool slot “D“ | 2mm x 22,5mm |
KL-0190-2605 | Terminal Tool split slot “E“ | 8mm x 24mm |
KL-0190-2606 | Terminal Tool slot “F“ | 4.6mm x 25mm |
KL-0190-2607 | Terminal Tool round “G“ | 3.3mm x 28mm |
KL-0190-2608 | Terminal Tool round “H“ | 4.3mm x 13mm |
KL-0190-2609 | Terminal Tool round “I“ | 3.8mm x 12.3mm |
KL-0190-2610 | Terminal Tool round “J“ | 3.0mm x 12.5mm |
KL-0190-2611 | Terminal Tool split slot horizontal “K“ | 3.2mm x 19.2mm |
KL-0190-2612 | Terminal Tool split slot horizontal “L“ | 1.6mm x 16.3mm |
